Draw Frame Top Rollers

Draw Frames Cots Specifications

Top Roller Cots Specifications for Various Machine Models

S.No Machine Model Cots Size (MM) Accotex Berkol Inarco
1 RSB-851 26 X 38 X 150
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
2 D30 / D35 / D40 / D45 / SB-D22 / D24 26 X 38 X 160
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
3 LD-2 FRONT / DEFLECTION ROLLER

LD-2 BACK ROWS 		24 X 36 X 160

26 X 38 X 160
  • 714-A – 80* LIGHT GREEN
  • J490-A – 83* GREY
  • HA83 – 83* PARROT GREEN
  • HA74-T – 74* GREEN
  • E472 – 72* GREEN
  • RD490 – 83* GREY
4 LD-A/1 FRONT / DEFLECTION ROLLER

LD-A/1 BACK ROWS 		24 X 36 X 150

24 X 36 X 150
  • 714-A – 80* LIGHT GREEN
  • J490-A – 83* GREY
  • HA83 – 83* PARROT GREEN
  • HA74-T – 74* GREEN
  • E472 – 72* GREEN
  • RD490 – 83* GREY
5 LDA-Z 24 X 36 X 150 / 160
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C )
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
6 D26 / D50 GREASING TYPE 26 X 38 X 160
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
7 LDB3 / LDF3 GREASING TYPE 26 X 38 X 160
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
8 TD-08 & TD-10 23x34x180
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
9 HSR-1000 23x34x174
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
10 Cherry Hara DX500 22x34x180
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
11 Cherry Hara DX600 / USC600 / DX800
TOYODA DT110 		23x34x180
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
12 VOUK SH-802 23x38x175

30x45x175
  • J490-A – 83* GREY (A)
  • 121-A – 72* BLACK (B)
  • 714-A – 80* LIGHT GREEN (C)
  • HA74-T – 74* GREEN (A)
  • HA83 – 83* PARROT GREEN (B & C)
  • RD490 – 83* GREY (A)
  • RD75-D – 75* BLACK (B)
  • S485 – 85* BLUE (C)
  • E472 – 72* GREEN (B)
NOTE :
  1. Cots spec – A : Recommended for 100% Carded Cotton / Breaker Draw Frame Passage
  2. Cots spec – B : Recommended for 100% Combed Cotton / Finisher Draw Frame Passage
  3. Cots spec – C : Suitable for Synthetics / Blends – with Antistatic Finish
Blog

RSB-851, RSB-951, SB-2, SB-20 Draw Frame Top Roller

Blog

RSB-851, RSB-951, SB-2, SB-20 Draw Frame Top Roller End Bush

Blog

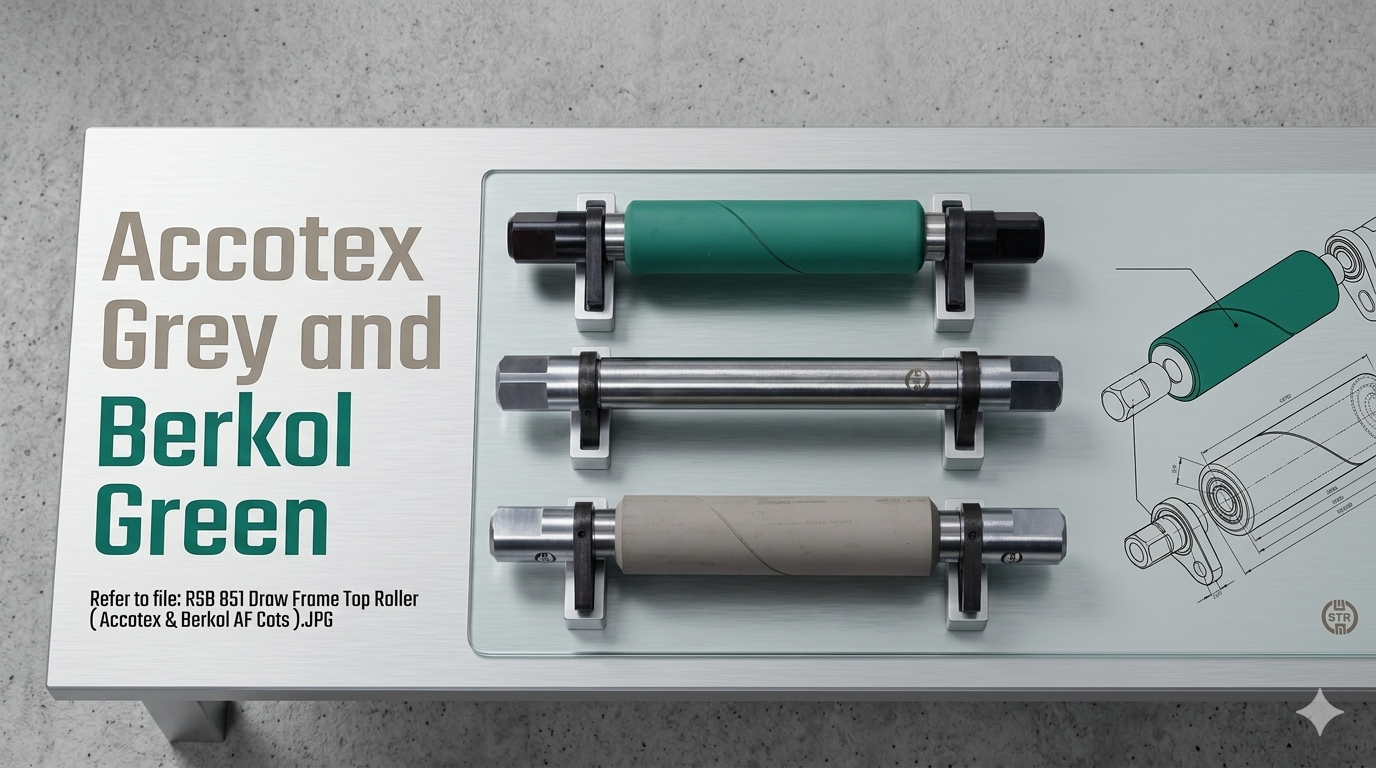

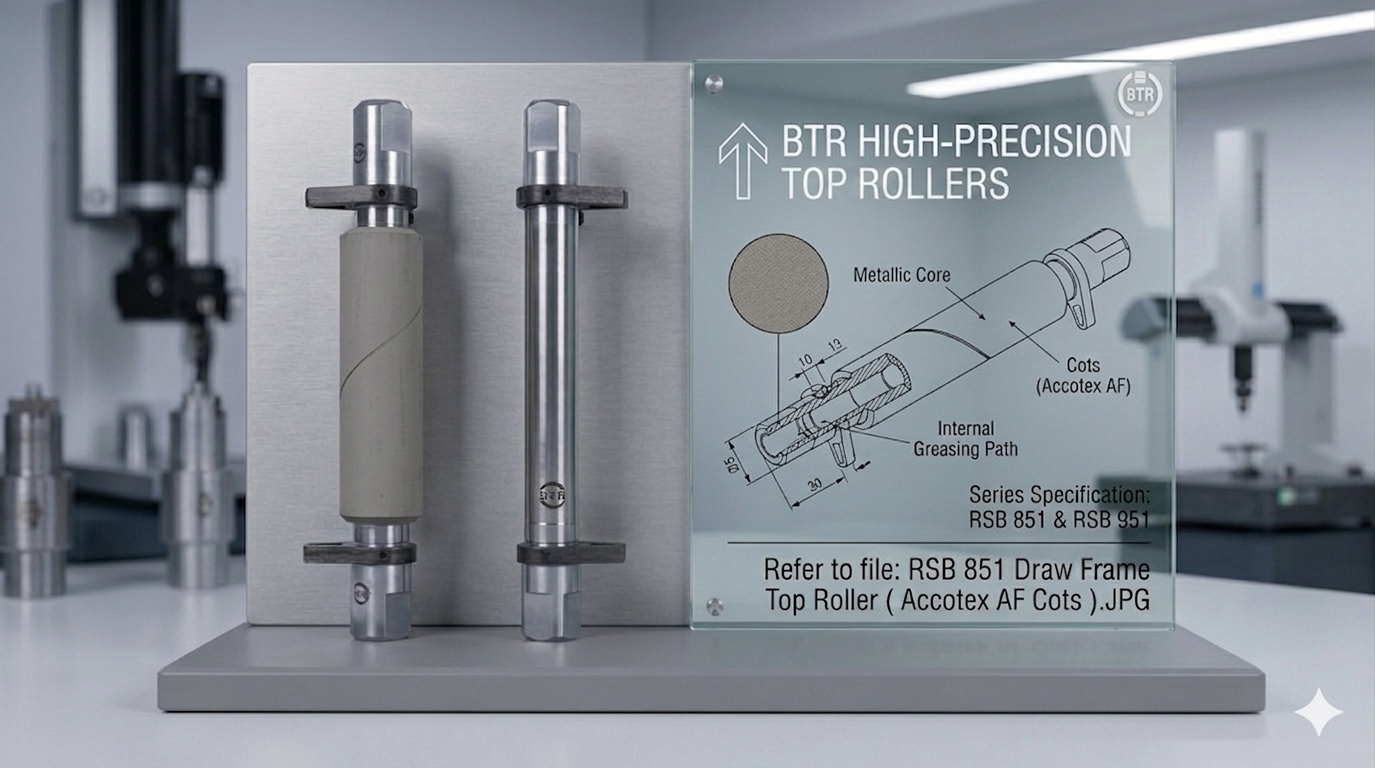

RSB 851 Draw Frame Top Roller ( Accotex AF Cots )

Blog

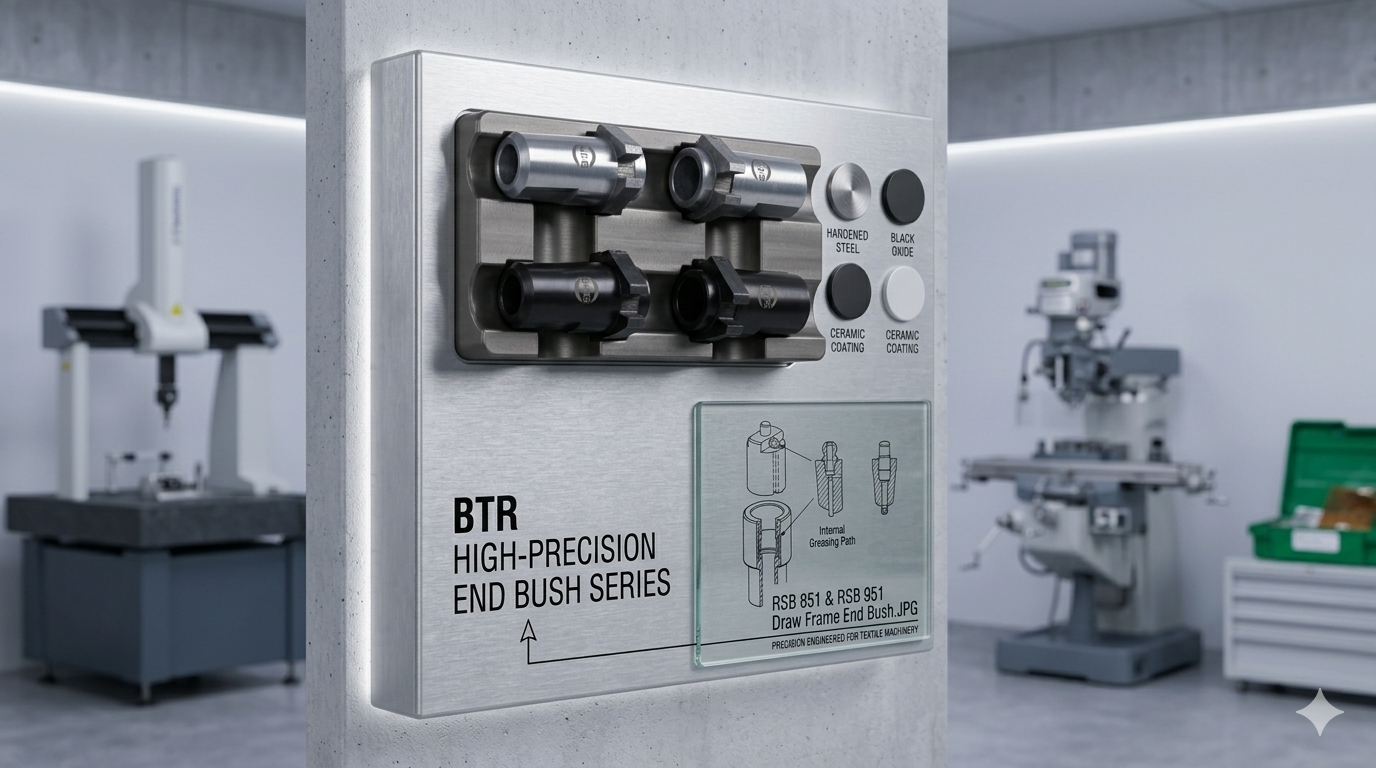

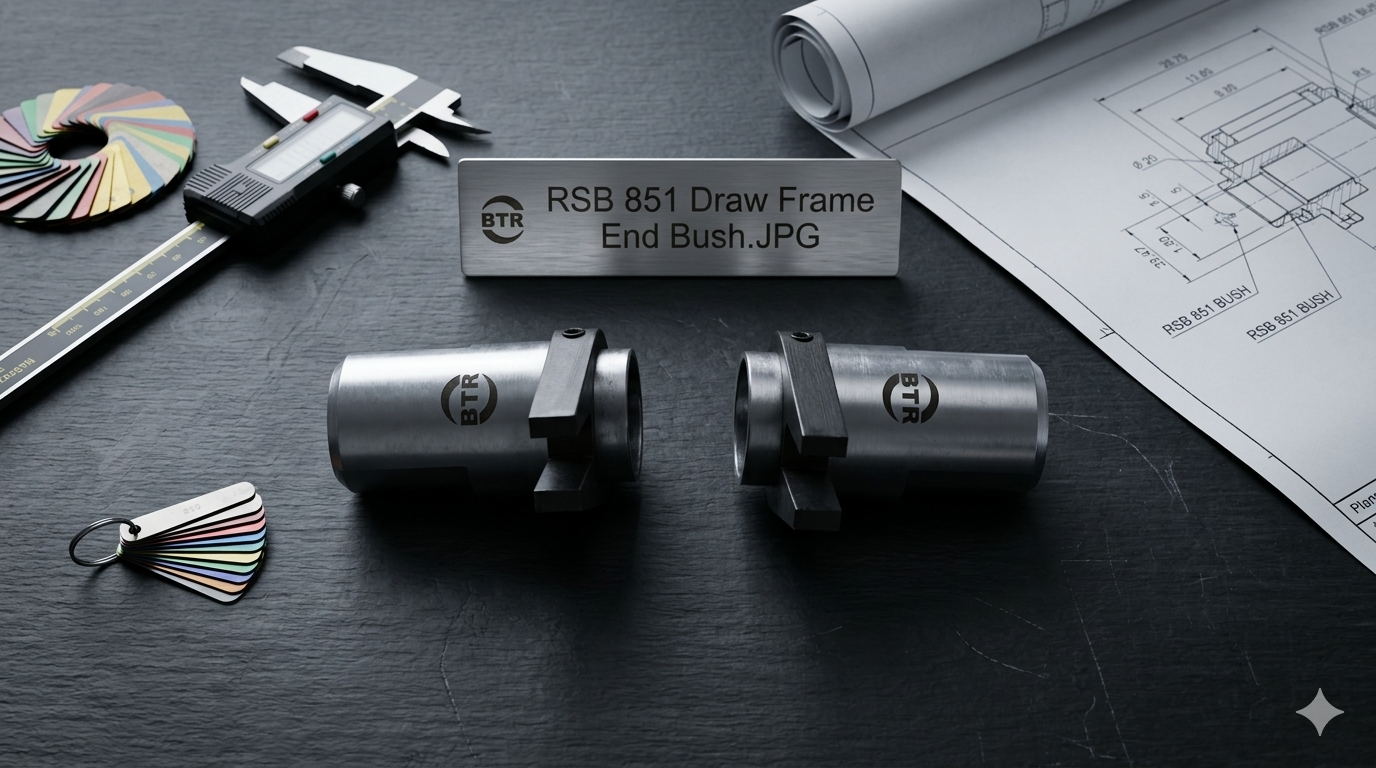

RSB-851 Draw Frame End Bush

Blog

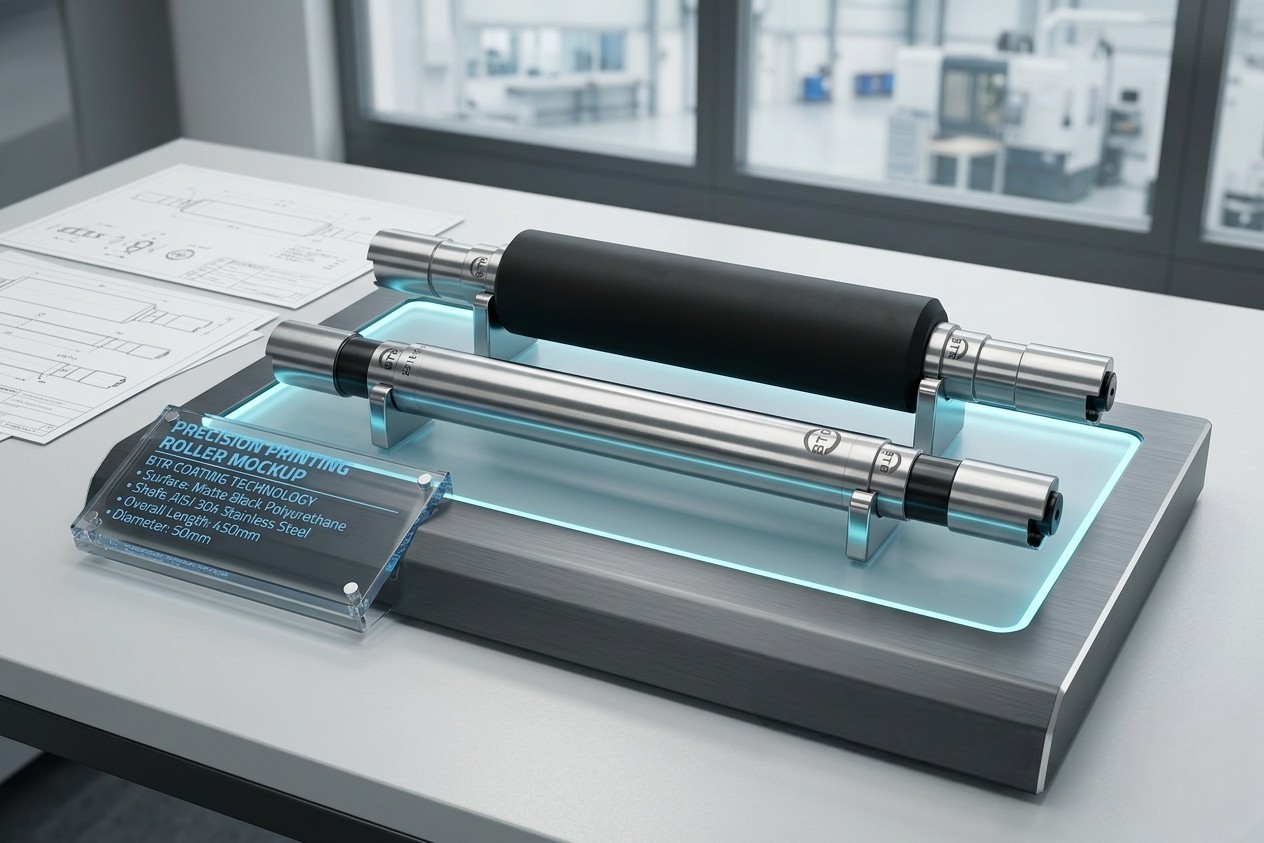

D30, D35, D40, D45, D22 and D24 Draw Frame Top Roller (Accotex AF Cots)

Blog

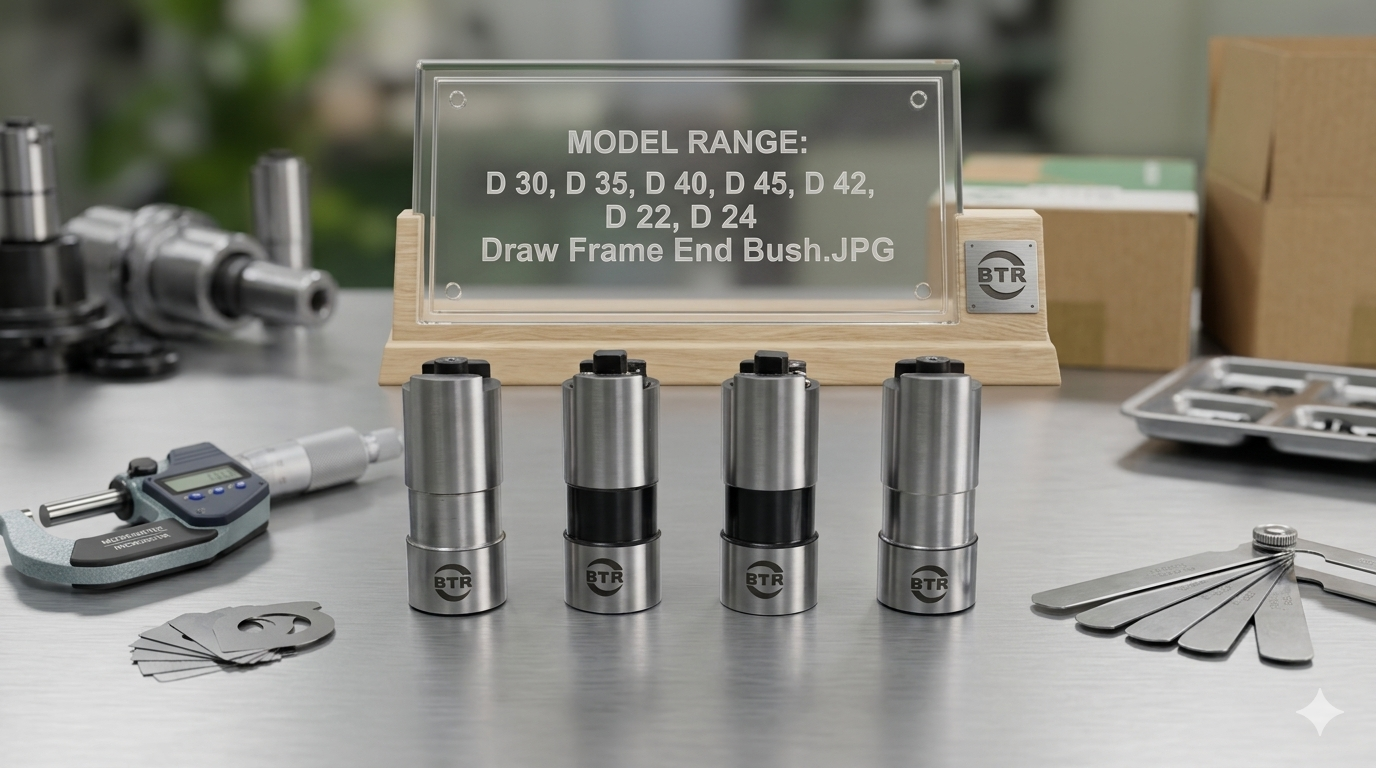

D 30, D 35, D 40, D 45,D 22, D 24 Draw Frame End Bush

Blog

D26 & D50 Draw Frame Top Roller (Greasing Type - Accotex AF Cots)

Blog

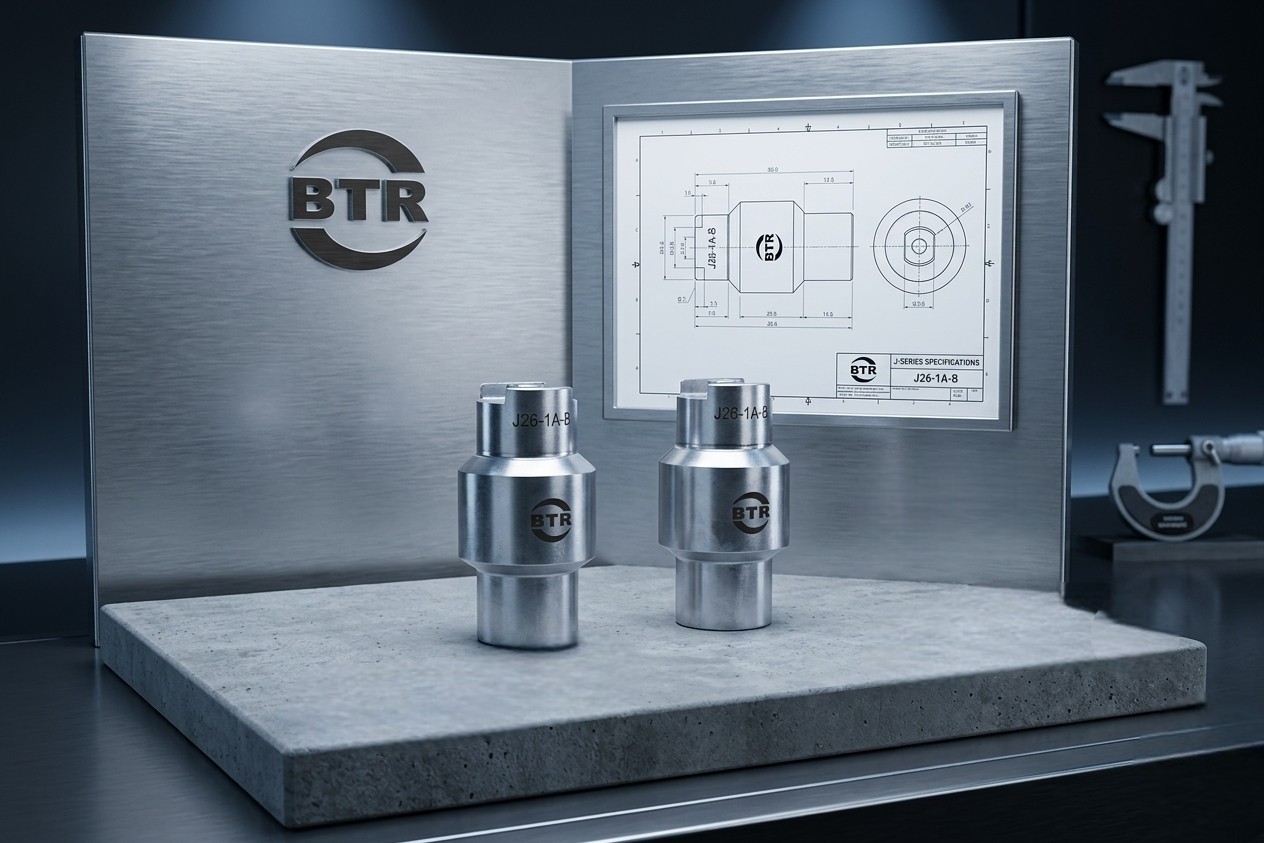

D50, D26 Draw Frame End Bush (Greasing Type)

Blog

LDF3, LDB3 Draw Frame End Bush (Greasing Type) Accotex Cots

Blog

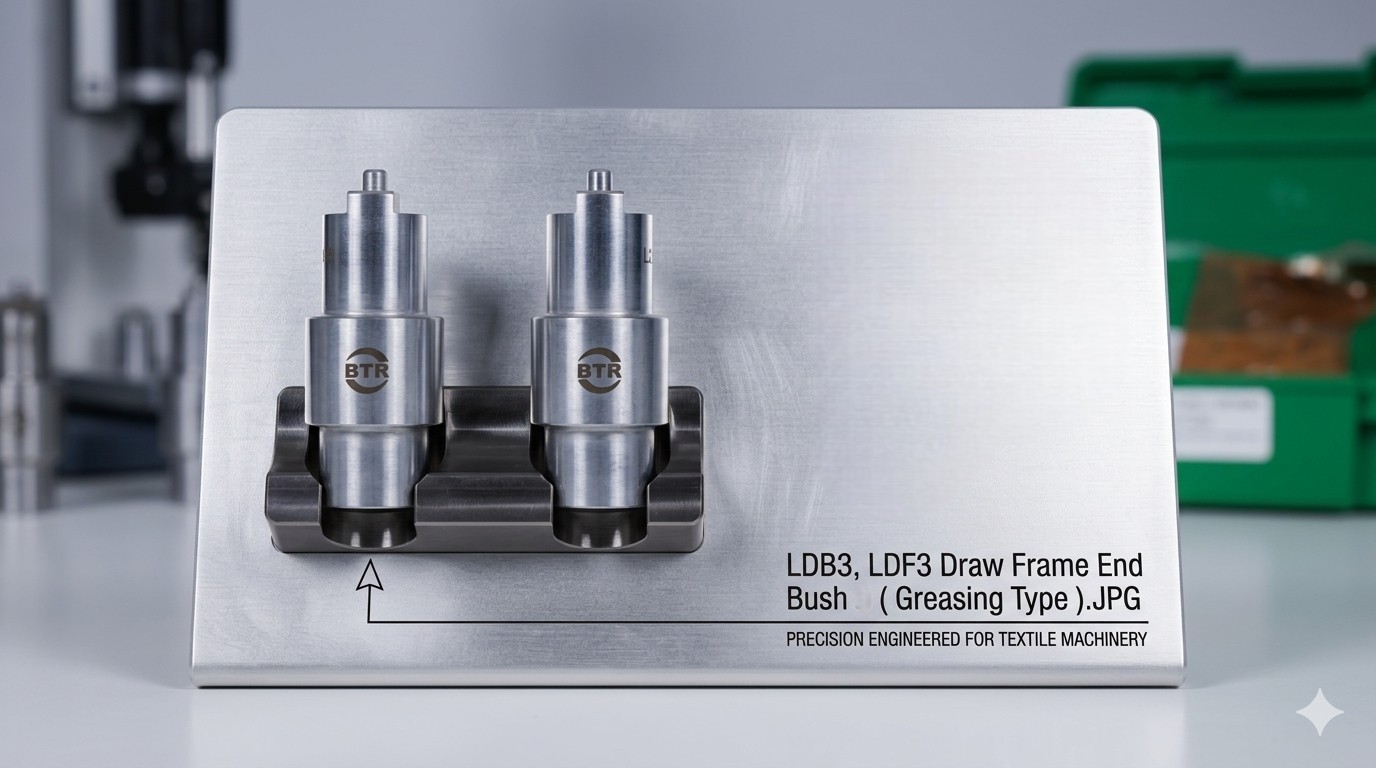

LDB3, LDF3 Draw Frame End Bush ( Greasing Type )

Blog

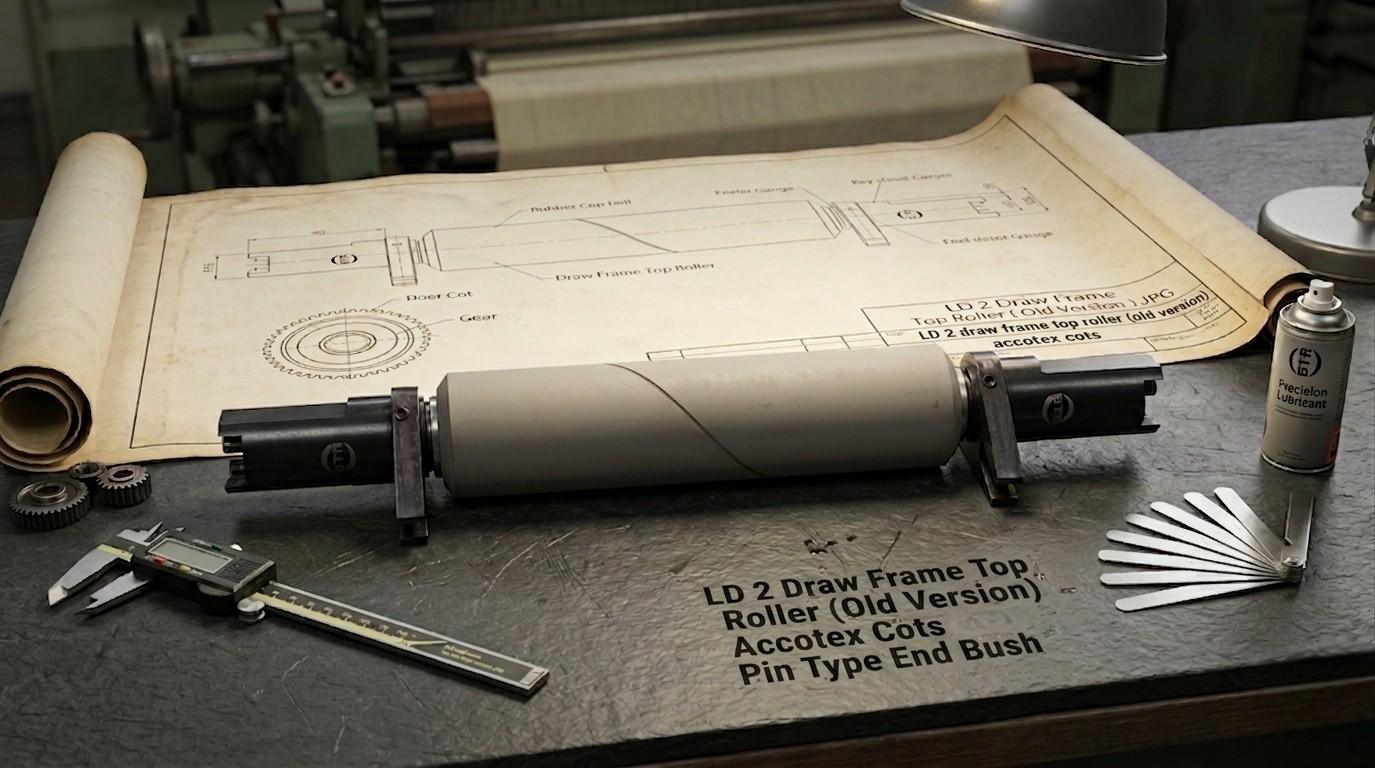

LD 2 Draw Frame Top Roller (Old Version) Accotex Cots

Blog

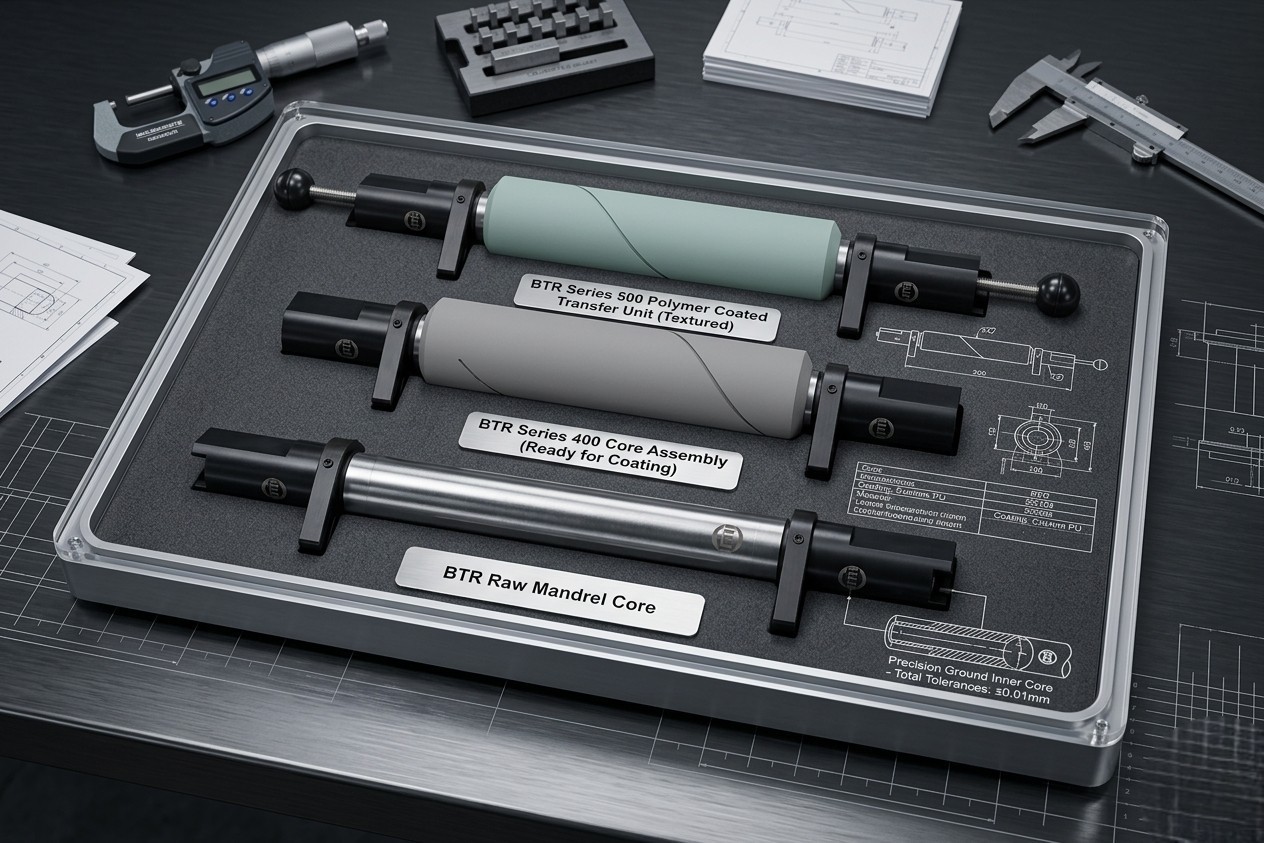

LD 2 Draw Frame Top Roller (Old & New Version)

Blog

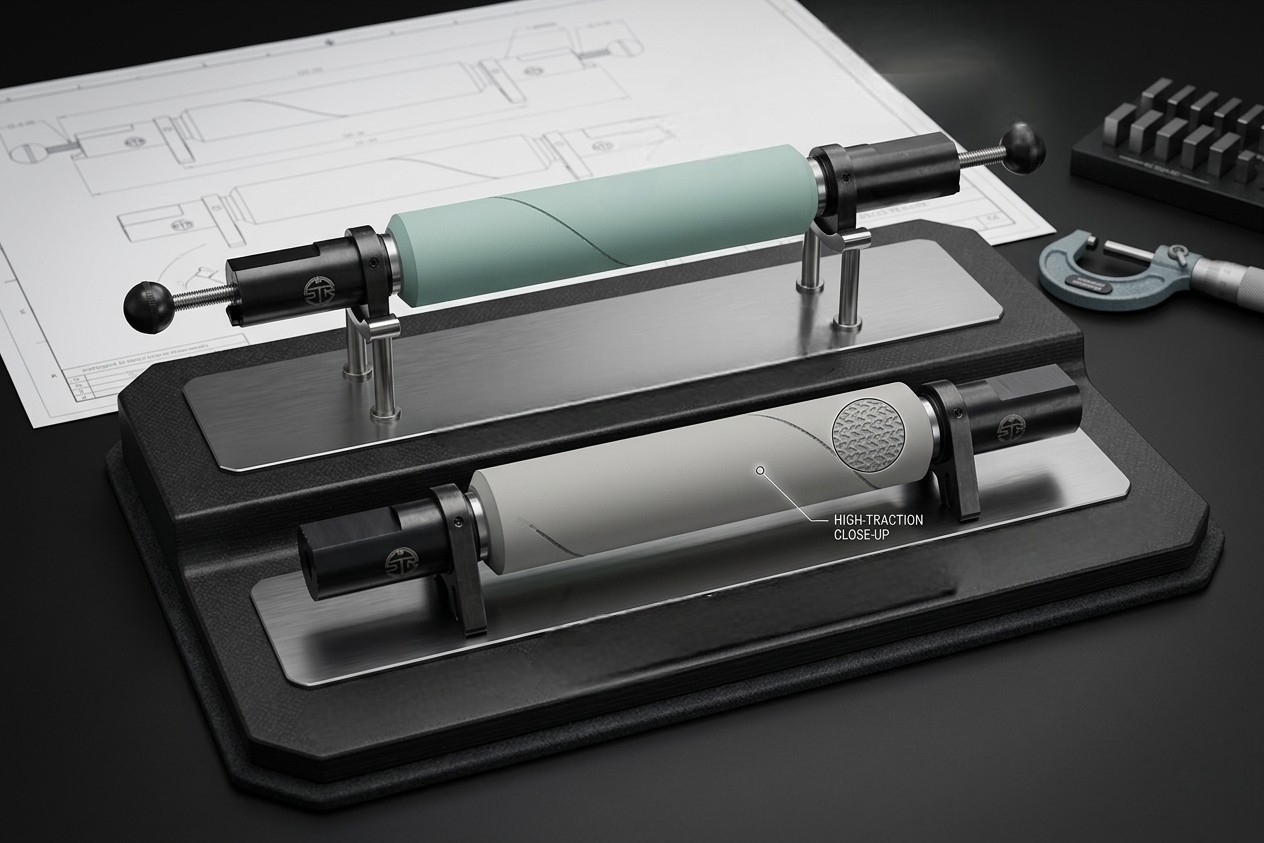

LD 2 Draw Frame Top Roller (New Version) Front Roller "Green" Back Rows - "Grey"

Blog

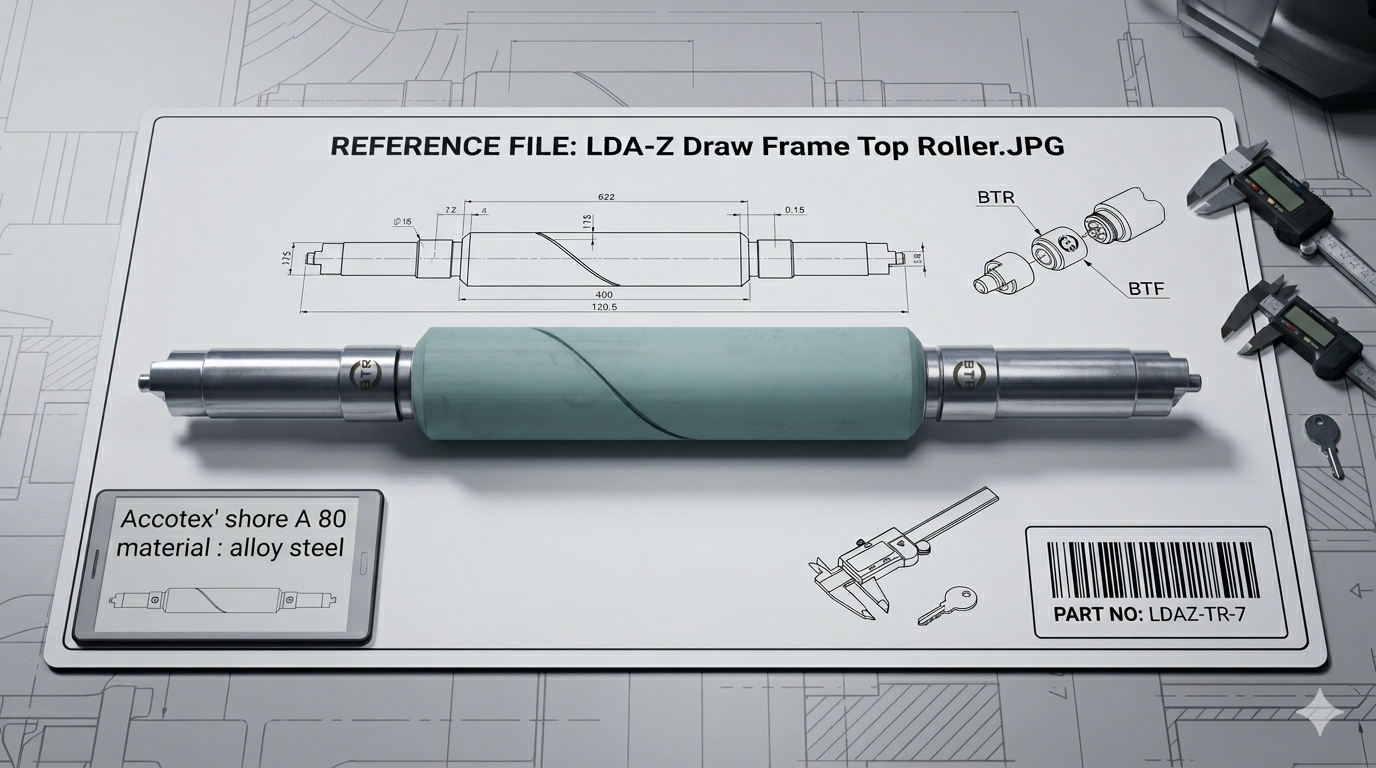

LDA-Z Draw Frame Top Roller

Blog

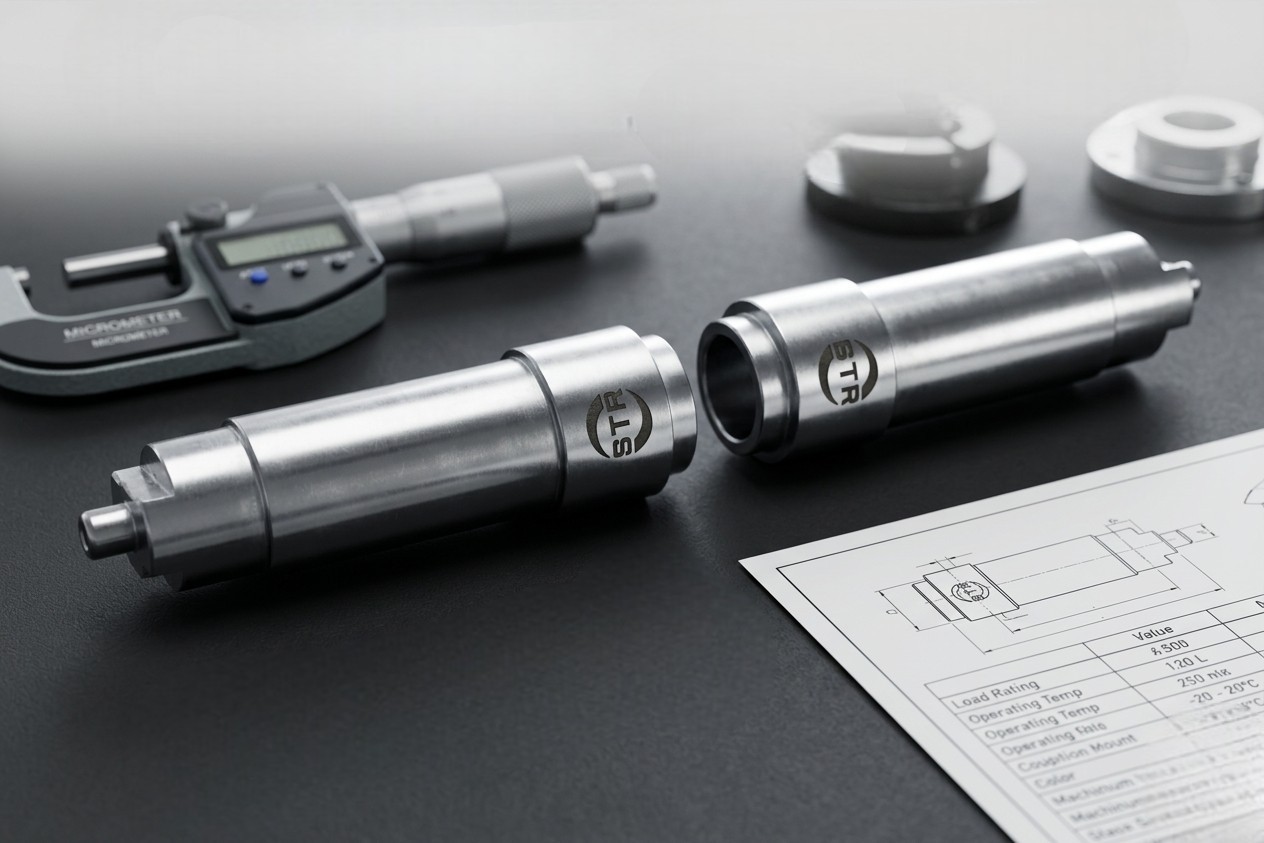

LDA-Z Draw Frame End Bush

Blog

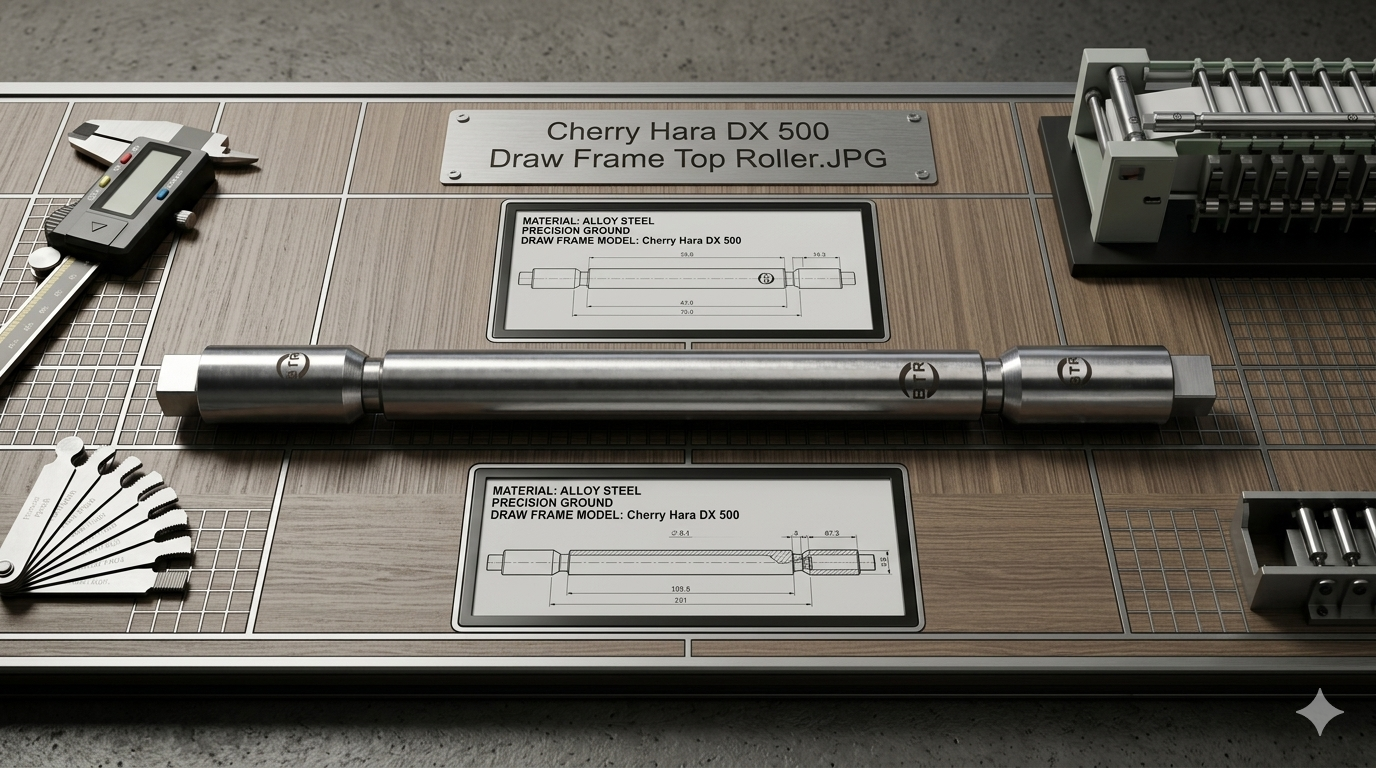

Cherry Hara DX 500 Draw Frame Top Roller

Blog

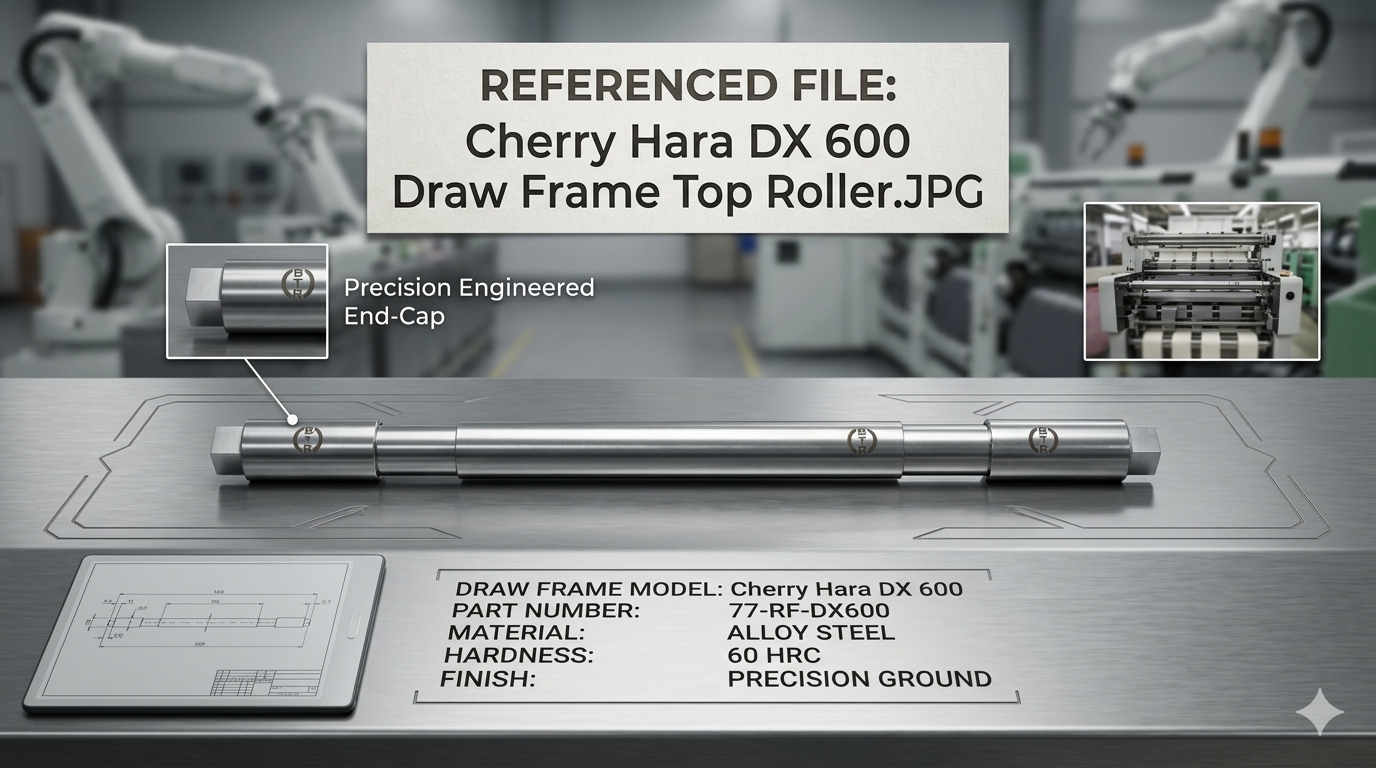

Cherry Hara DX 600, Toyoda DT 110 Draw Frame Top Roller

Blog

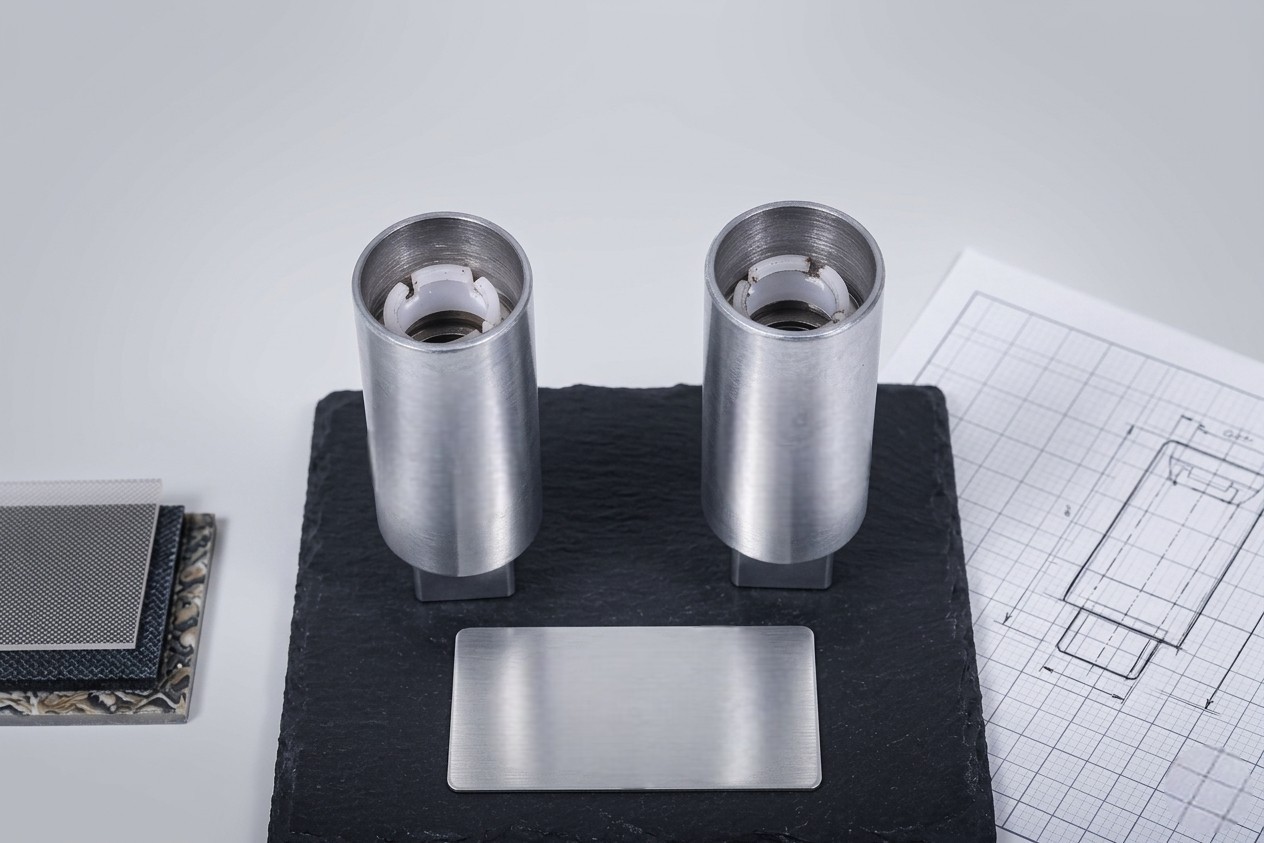

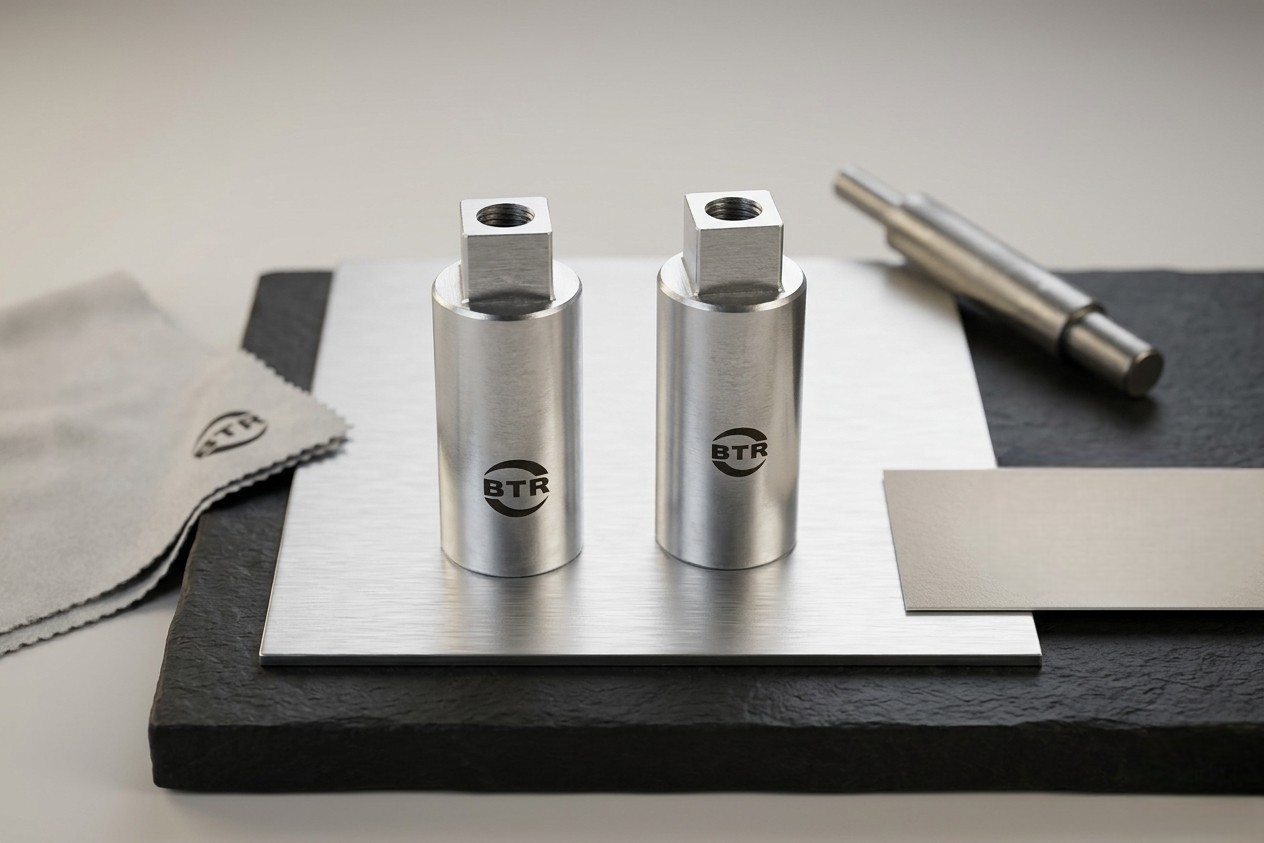

Cherry Hara Draw Frame DX600, Toyoda DT 110 End Bush

Blog

Cherry Hara Draw Frame DX600, Toyoda DT 110 End Bush

Blog

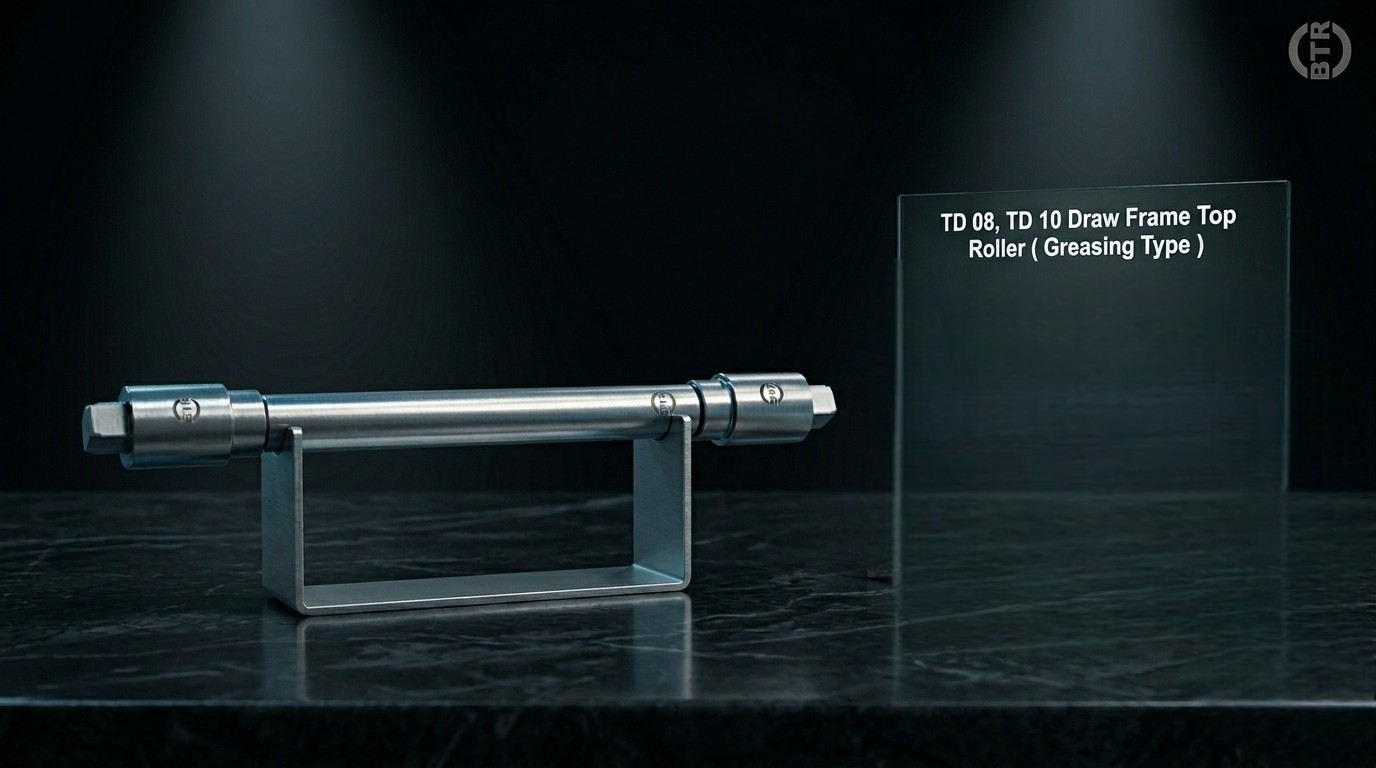

TD08, TD10 Draw Frame Top Roller (Greasing Type)

Blog

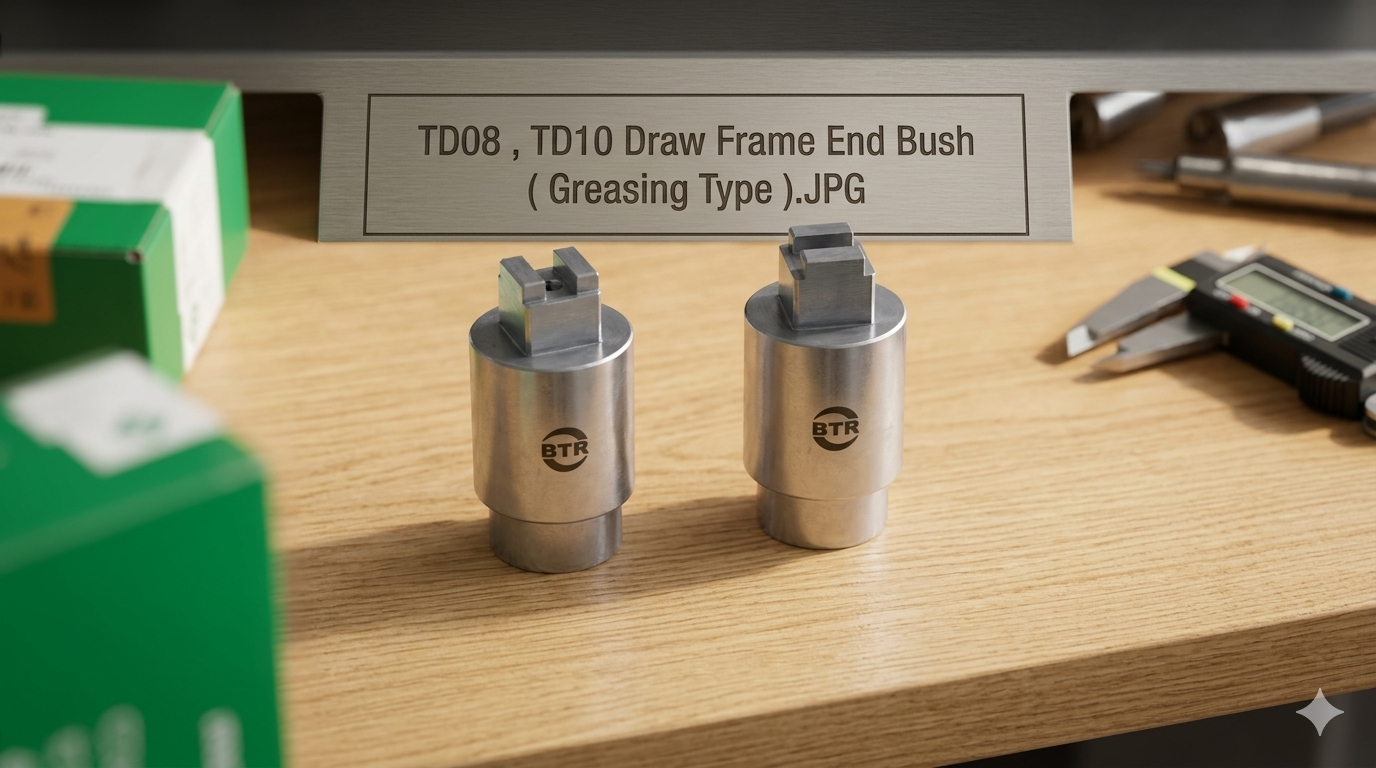

TD08, TD10 Draw Frame End Bush (Greasing Type)

Blog

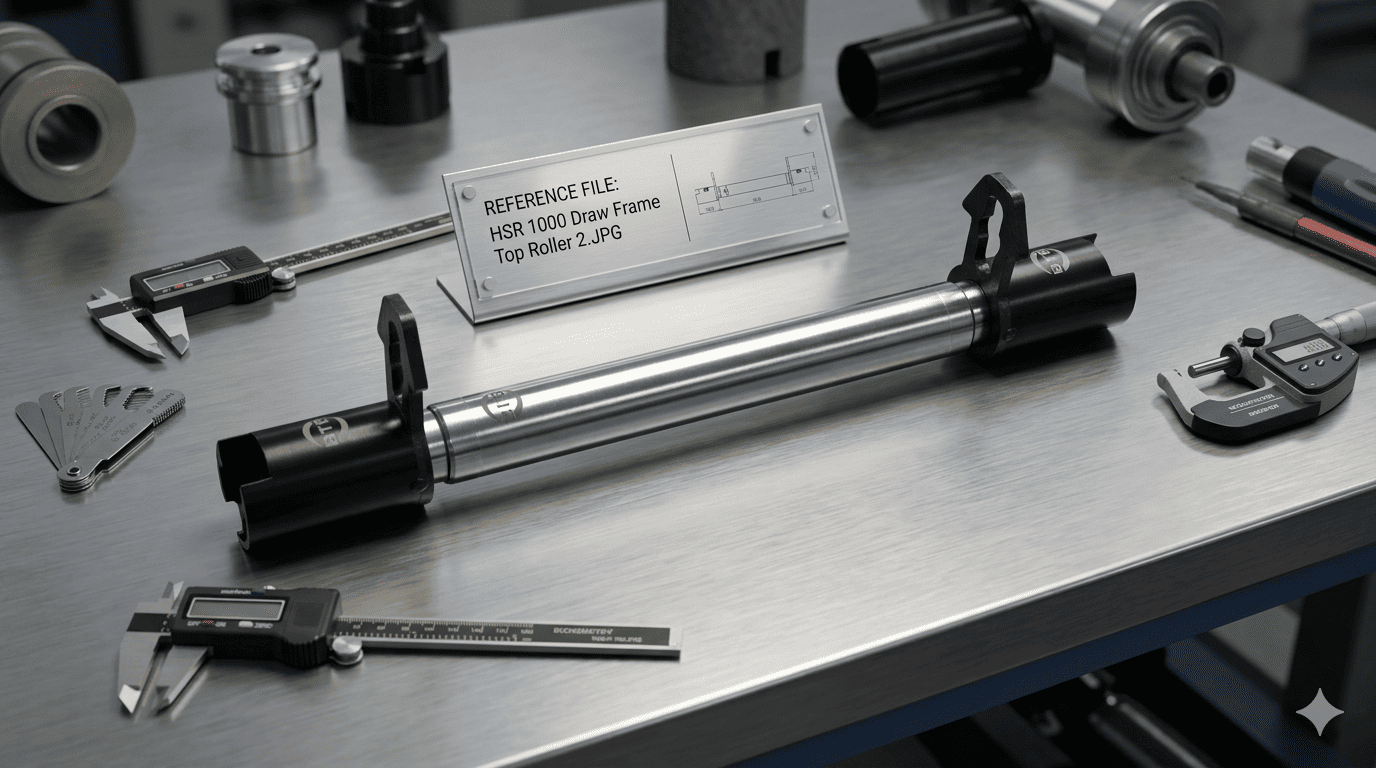

HSR 1000 Draw Frame Top Roller

Blog

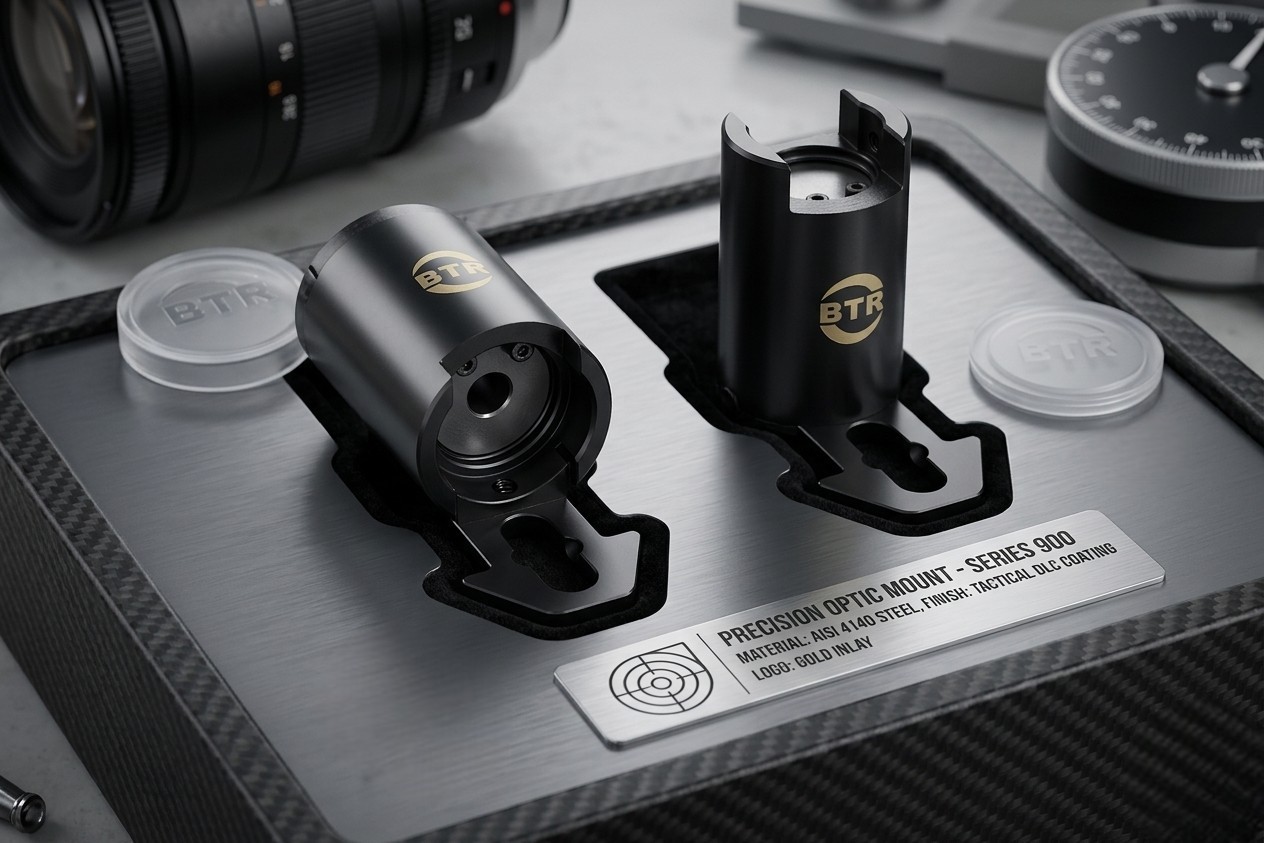

HSR 1000 Draw Frame End Bush

Blog

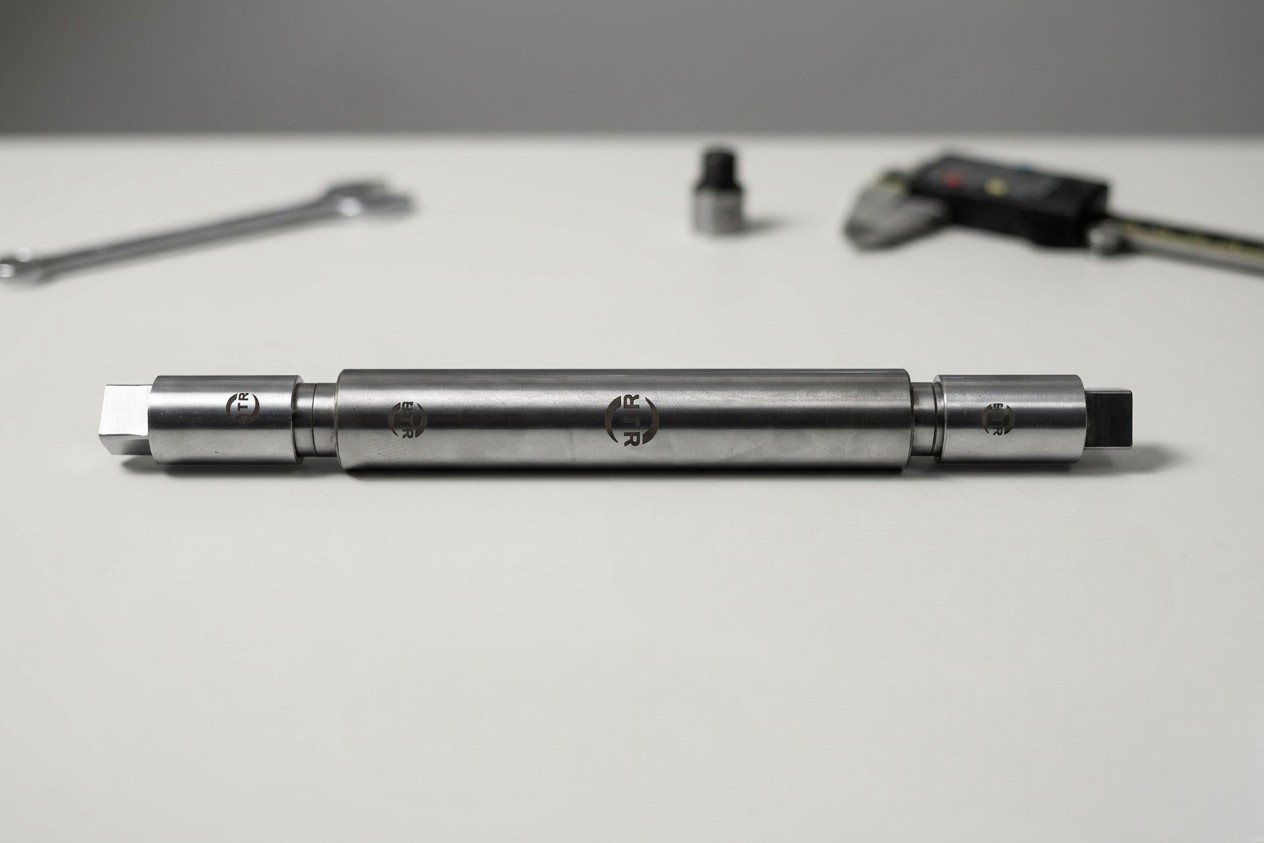

Vouk Draw Frame SH 802 Top Roller

Blog

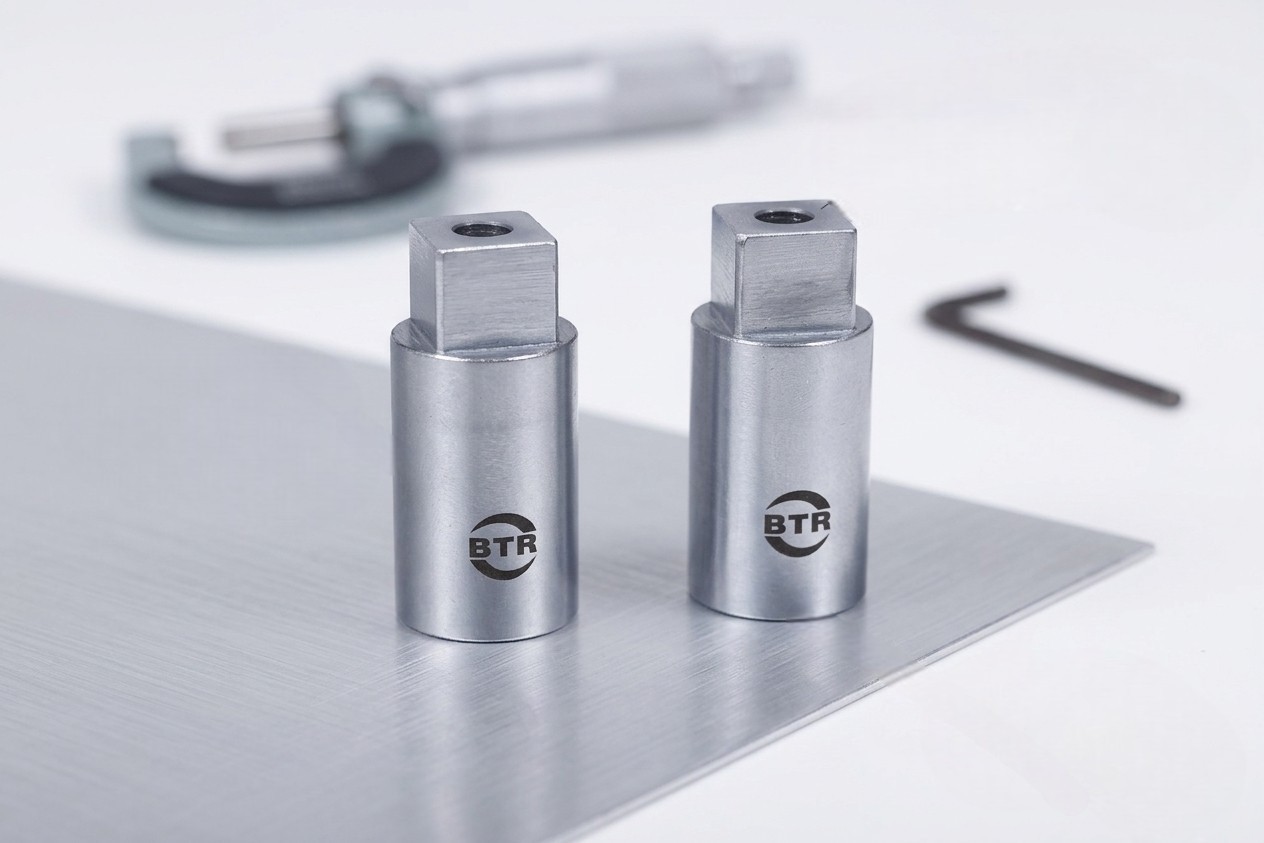

Vouk Draw Frame SH 802 End Bush

Blog

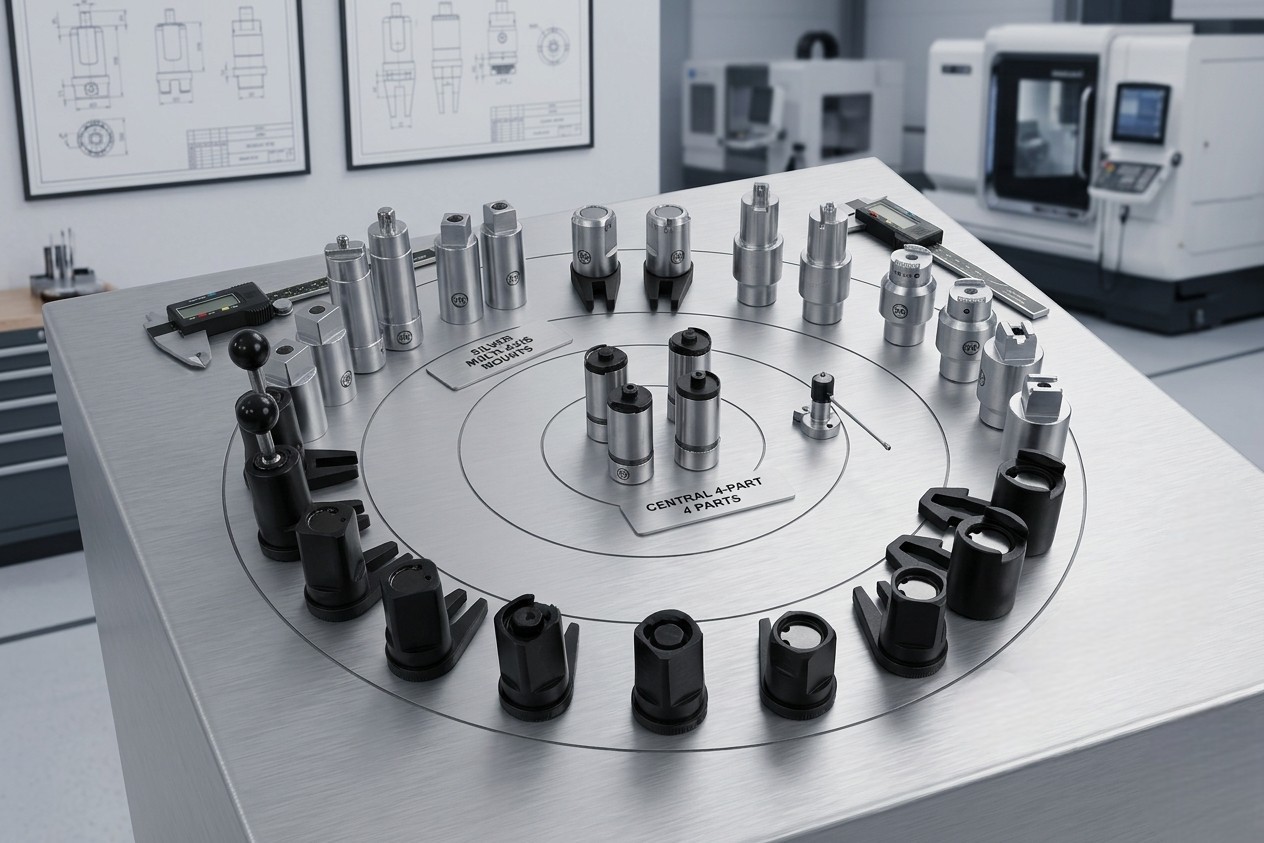

Draw Frame Top Roller End Bushes Mixed

Blog

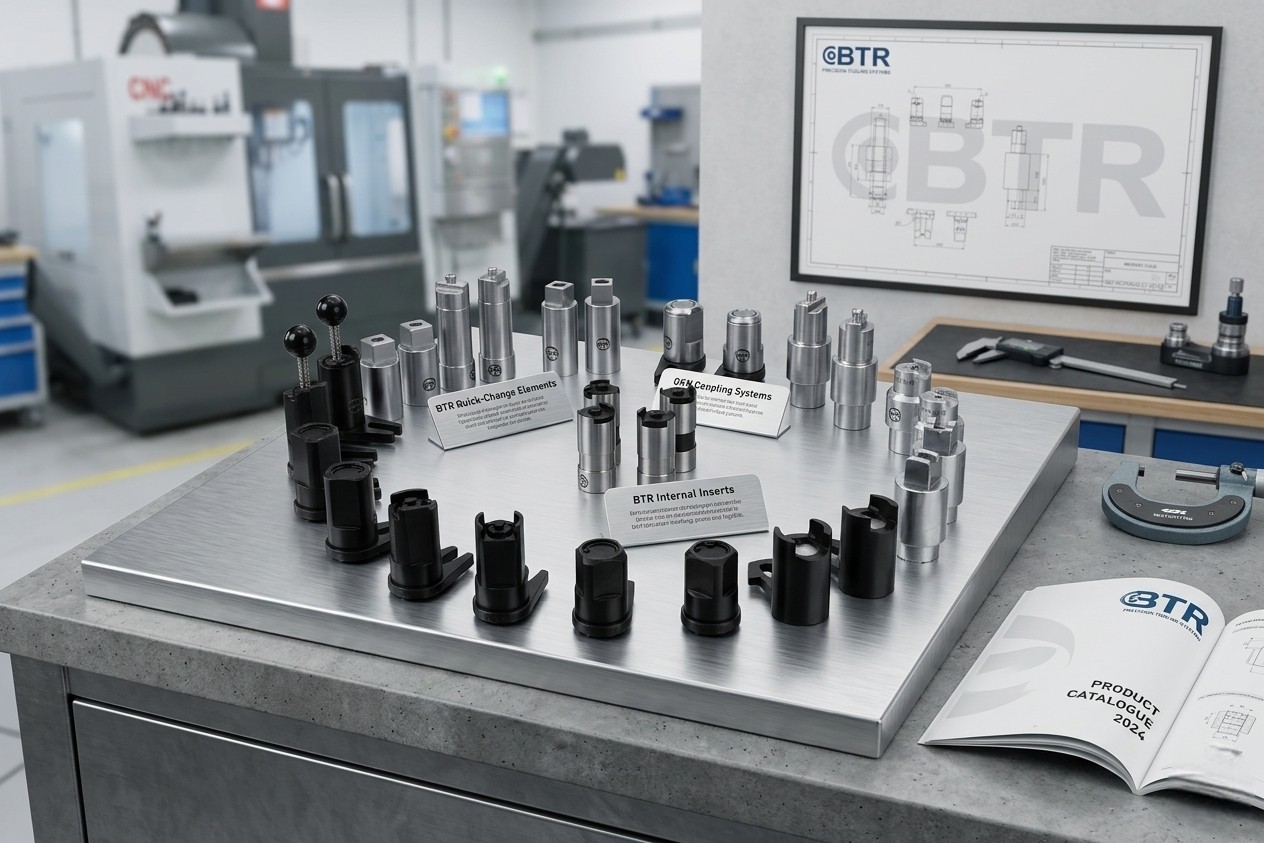

Draw Frame Top Roller End Bushes Mixed
